1-Score Split Face – Angelus Block

1-Score

Split Face

A low impact CarbonKind™ product.

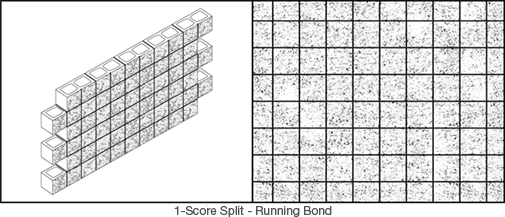

A single vertical score mid-length, 3/8-in wide and deep, simulates a raked joint. For typical cmu with an 8-in by 16-in face, the effect is a grid of 8×8 squares that can effectively add accent or interest to the elevation.

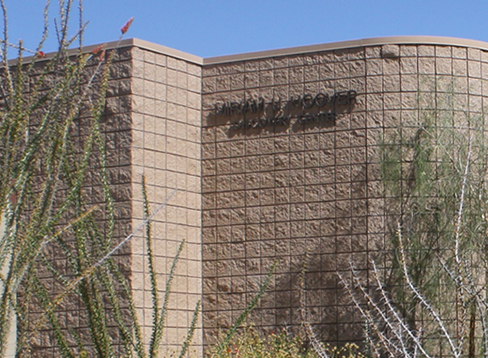

Split faces reveal the aggregate matrix for a roughhewn, natural look.

Angelus 1-Score Split Face CMU Data Sheet

6″ x 8″ x 16″ 1-Score Standard Split 1-side

Special Order.

8″ x 8″ x 16″ 1-Score Open End Standard Split 1-side

Special Order.

8″ x 8″ x 16″ 1-Score Open End Bond Beam Split 1-side

Special Order.

10″ x 8″ x 16″ 1-Score Open End Standard Split 1-side

Special Order.

This item may be limited in plant location or color availability.

10″ x 8″ x 16″ 1-Score Open End Bond Beam Split 1-side

Special Order.

This item may be limited in plant location or color availability.

12″ x 8″ x 16″ 1-Score Open End Standard Split 1-side

Special Order.

This item may be limited in plant location or color availability.

12″ x 8″ x 16″ 1-Score Open End Bond Beam Split 1-side

Special Order.

This item may be limited in plant location or color availability.

Aggregate exposure in all deep scored and fluted split units will vary across the unit face, but is not discernable when viewing the entire field.

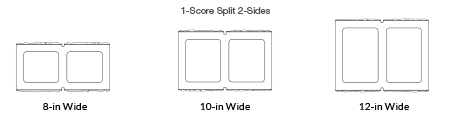

Cells and web configurations as shown are representational only, and actual configurations may differ.

Consult your Angelus Block representative for more information.

WARNING: This product can expose you to Silica, crystalline (airborne particles of respirable size) which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
