1-Score Veneer / Composite CMU

Split Face

A low impact CarbonKind™ product.

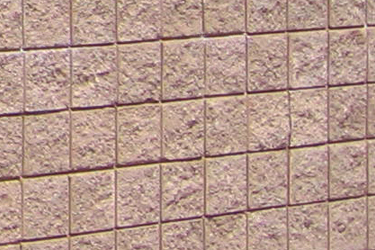

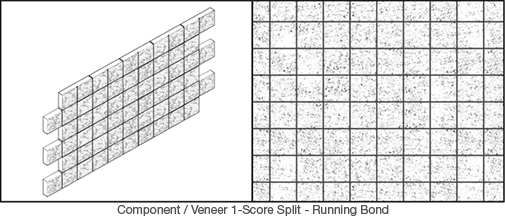

A single vertical score mid-length, 3/8-in wide and deep, simulates a raked joint. For typical cmu with an 8-in by 16-in face, the effect is a grid of 8×8 squares that can effectively add accent or interest to the elevation.

The Shotblast texture roughens the surface and removes sharp edges.

These units are suitable for use in anchored veneer and These units are suitable for use in anchored veneer and composite masonry applications. For more information, please visit Concrete Masonry Veneer and Composite Masonry.

Angelus 1-Score Veneer and Composite Split Face CMU Data Sheet

3″ x 8″ x 16″ 1-Score Solid Split 1-side

Special Order.

Score alignment and exposure depth can vary with normal manufacturing. Aggregate exposure in all scored split units will vary across the unit face, but is not discernable when viewing the overall field.

Consult your Angelus Block representative for more information.

WARNING: This product can expose you to Silica, crystalline (airborne particles of respirable size) which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
